Yamaha Wolverine X4 850 Winch Mounting Plate

Strength That Matters
Your big, 4-seater Wolverine throws around a lot of weight, but when you throw that weight into a mud hole, it can be hard to pull it out. With SuperATV's Winch Mounting Plate for the Yamaha Wolverine X4 850, you can be confident knowing that your Black Ops Winch will stay mounted to your machine, no matter how much peanut butter mud you have to drag it through.

Superior Construction
We make our winches with laser-cut 3/16" steel that's brake-press bent and powder coated. That makes it strong and durable for a lifetime perfect for the 3500 lb. Black Ops Winches that fit on it. It also comes with all hardware to make it easy to install and get back to causing trouble.

NOTE: The winch mount has a bolt pattern for the majority of aftermarket 3500 lb. winches. This includes Warn, Superwinch, and OEM winches.

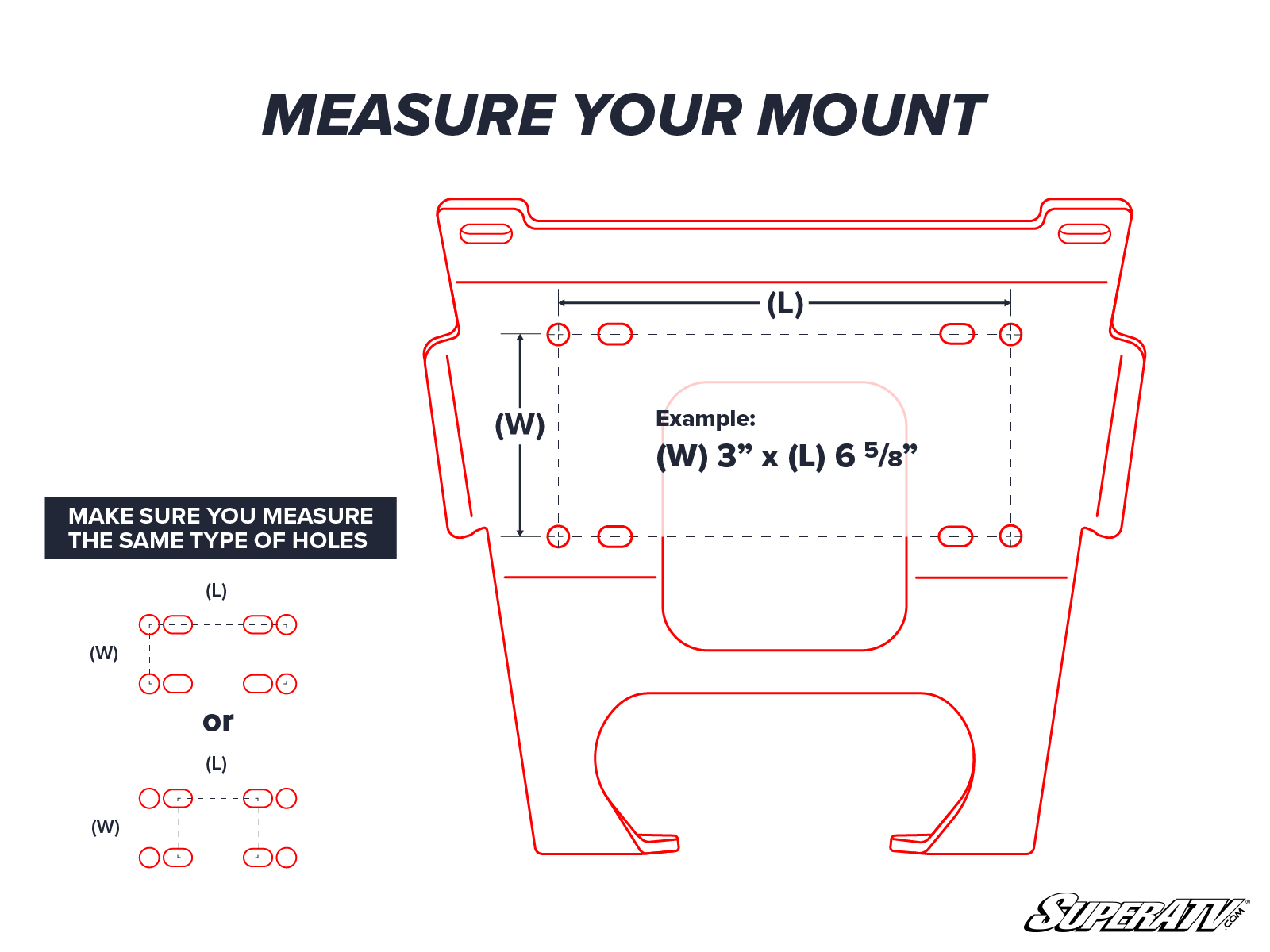

Mounting Holes:
76mm x 169mm (3" x 6 5/8")
76mm x 124mm (3" x 4 7/8")

Fairlead Bolt Pattern:109mm (4.29")
152mm (5.98")

For Use With:
SuperATV 3500 Synthetic Rope Winch

The winch mount has dual mounting bolt patterns for the majority of 3500 lb winches. This includes Warn, Superwinch, and OEM winches. Please check manufacturer mounting requirements.-->
