Can-Am Renegade Winch Mounting Plate

Always Have a Backup Plan
The only thing worse than getting stuck is getting stuck and having your winch mount give out on you at the same time. Talk about adding insult to injury. Save yourself the walk home by adding SuperATV's Winch Mounting Plate to your Can-Am Renegade. It's designed to work with Black Ops Winches rated up to 6000 pounds. Whether you're rescuing a buddy or getting yourself out of a low-talent moment, this mounting plate is up for the job.

Built to Last a Lifetime

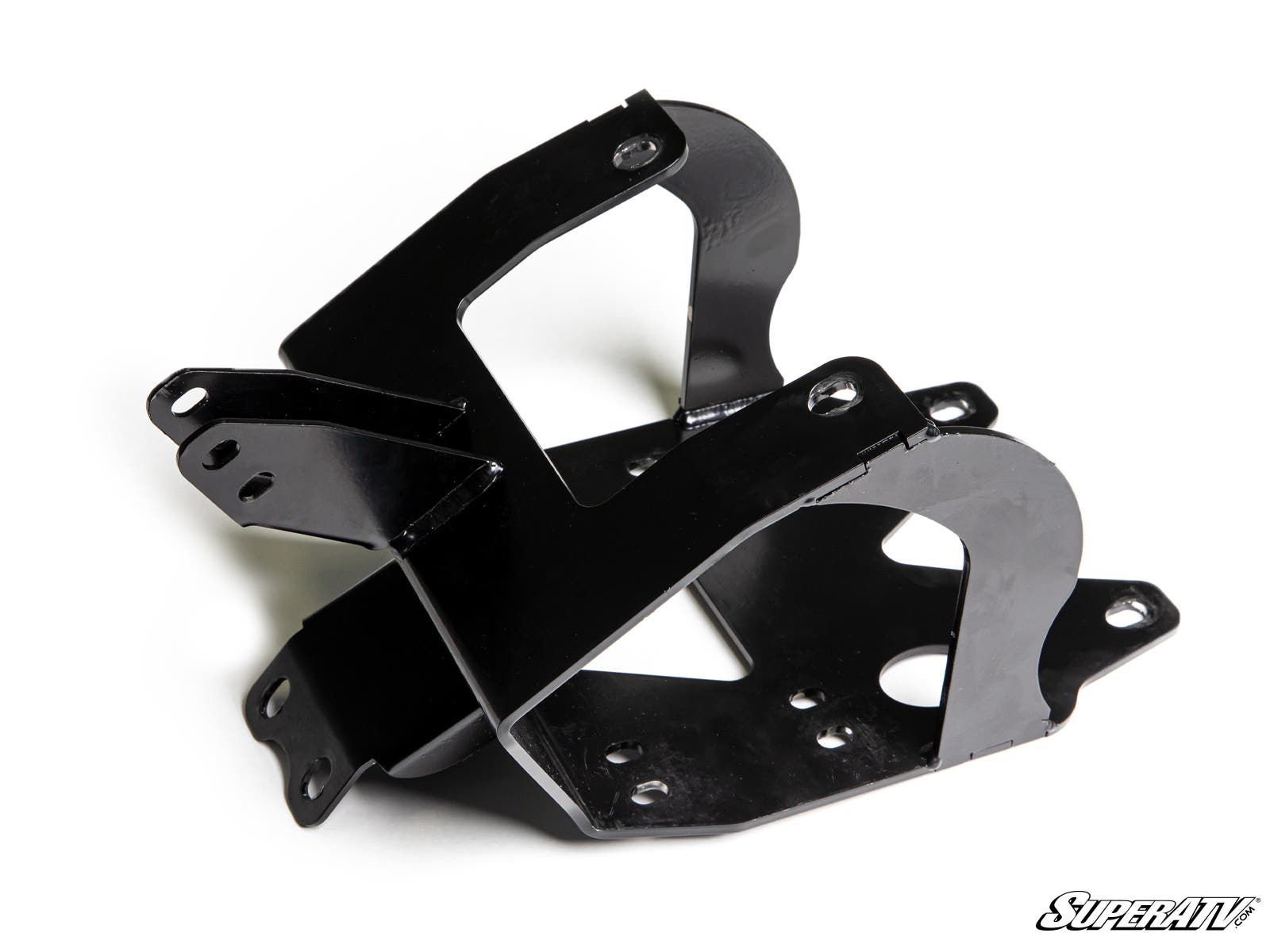

We guarantee this winch mount won't let you down when you need it most. It's made from 3/16" heavy-duty steel plating that is laser cut and CNC brake press bent. We also add a powder-coat finish, which prevents corrosion and makes your mounting plate even stronger. Installation is super easy, too. Just bolt it on and you're left with a Can-Am winch mount that's super strong, precision fit, and lasts a lifetime.

NOTE: This winch mount is compatible with the majority of aftermarket 2500-6000 lb. winches that use the same bolt pattern.

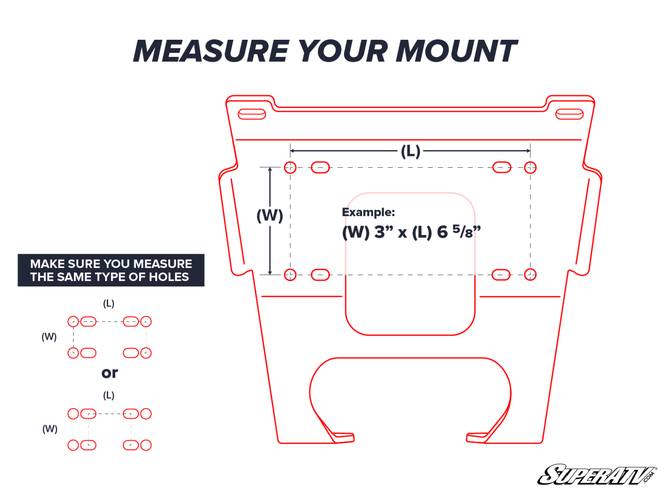

Mounting Holes:
76mm x 169mm (3" x 6 5/8")
76mm x 124mm (3" x 4 7/8")

Fairlead Bolt Pattern:
109mm (4.29")
152mm (5.98")

For Use With:
SuperATV 3500 Synthetic Rope Winch
SuperATV 4500 Synthetic Rope Winch
SuperATV 5000 Synthetic Rope Winch

The winch mount has dual mounting bolt patterns for the majority of 3500-5000 lb winches. This includes Warn, Superwinch and OEM winches.

-->
